Muting DI Box
ff

ee

A development of our successful DI Box design - this product has a silent mute facility - which many players will find invaluable for use on stage - when changing instruments, or quiet tuning.

·
  Single instrument input - optomised for best performance from most instrument pickups
·
  Buffered low impedance output on a jack socket to feed backline amplifier or on stage monitoring. This output mutes.
·
  Balanced XLR output at microphone level to feed the mixing console. This main output also mutes.
·
  Buffered tuner output available at all times, irrespective of mute state.
·
  Red LED indicates output mute status..
·
  May be either battery or phantom powered - the PP3 battery is housed in a drawer for easy access.


Active circuitry for superb performance.

Momentary footswitch, mechanically quiet in operation - mute action latches electronically.


UK price: £64.00 including VAT and postage

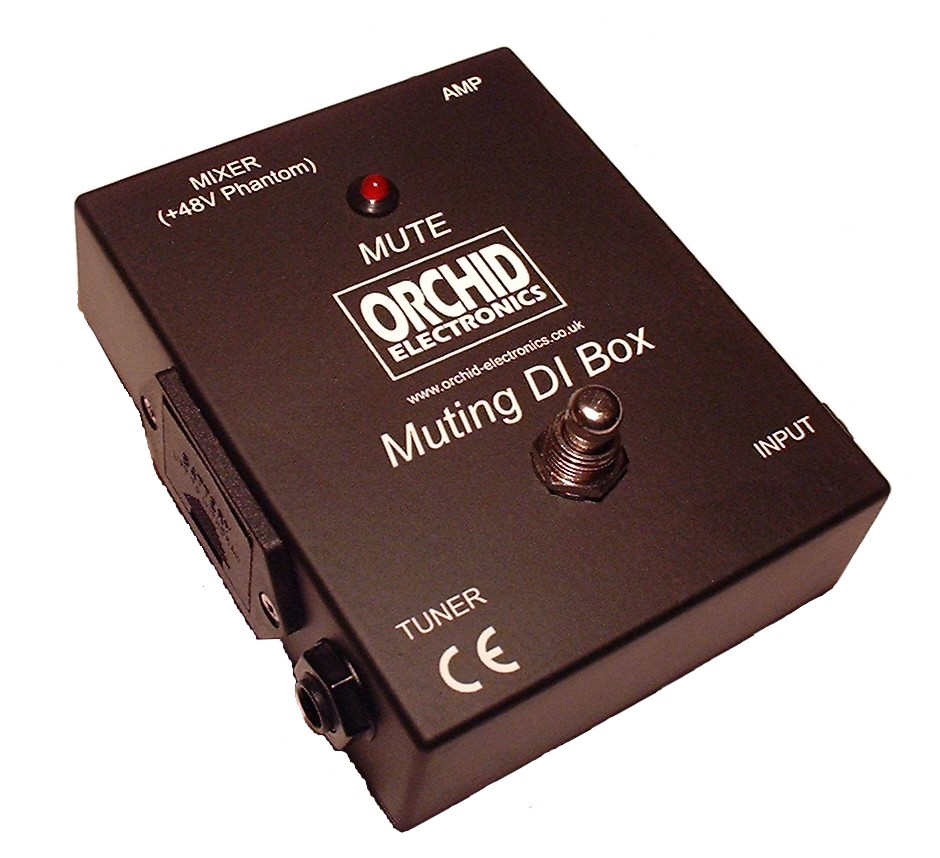

Muting DI Box
Muting DI stand up view



Orchid Electronics Muting DI Box leaflet PDF

Sound On Sound magazine review May 2012 PDF
